JF series
|
JF・F series
Advanced multi ironing system which unified
three functions.


MULTI-IRONING SYSTEM, AN ADVANCED PROCESS UNIFYING THREE DIFFERENT FUNCTIONS
Important for increasing productivity is the flow of ironing-works. Reliable JF Multi-system unifies the Boiler, Iron and Vacuum into one machine. This allows for a more efficient plant layout, smoother workflow and increased productivity.

ULTRA LIGHT & FULL-AUTOMATIC BUILT-IN BOILER, MAKES THE SYSTEM ADAPTABLE TO ANY CHANGE IN LAY-OUT
The built-in boiler with cartridge tank eliminates the need for plumbing and piping.

SPEEDY FINISHING WORKS WITH INVERTER CONTROLLED VACUUM
Motor speed can be adjusted freely 1,600-3,000 r.p.m. for Flat Table and 2,000-4,000 r.p.m for Buck by INVERTER CONTROL to comply with various kinds of materials.
Suction Power can be adjusted according to the materials, this increasing your work efficiency.
Since the iron is interlocked with ironing table and operates, even beginners can use this machine easily.

---------------------------------------------------------------------

MODEL
JF-55
BOARD+BUCK COMPLEX
TABLE
 F-55
BOARD+BUCK WITHOUT
BOILER
VOLTAGE 220V, 1-Ph
MOTOR OUTPUT 750W, 2 Pole
BUCK CALIBER 108φ
WORKING AREA 400X1000mm (standard specs)
MACHINE SIZE 755X615X1710mm 503X615X1710mm
WATTAGE(BOILER) 1.8kW
-
WATTAGE(IRON) 1000W(CNP-410J)
WEIGHT 110kg 96kg
MAIN FUNCTION Inverter control, iron interlocking device, height adjustment with gas spring (790-910mm)
OPTIONAL ITEMS Iron lifter, Bucks, Flat table There are models for Flat table only and for bucks only.
The picture enlarges when you click it.

MODEL
FLAT BOARD only BOARD or BUCK BUCK only
JF-50A JF-50B JF-50C
F-50A
FLAT BOARD only
(without Boiler)		 F-50B
BOARD or BUCK
(without Boiler)		 F-50C
BUCK only
(without Boiler)
VOLTAGE 220V, 1-Ph
MOTOR OUTPUT 750W, 2 Pole
BUCK CALIBER - 148φ
108φ
FLAT TABLE SIZE JF-50A,50B select one out of 400X800X,400X1000,600X1000 -
MACHINE SIZE 755X615X1710mm
WATTAGE(BOILER) JF-50A/50B,50C:1.8kW F-50A/50B/50C:none
WATTAGE(IRON) 1000W(CNP-410J)
WEIGHT 96kg
MAIN FUNCTION Inverter control, iron interlocking device, height adjustment with gas spring (790-910mm)
OPTIONAL ITEMS Iron Lifter, Flat table, Iron stand
 Iron Lifter, Flat table, or Bucks, Free-arm iron stand, Decorating plate
 Iron lifter, Bucks, Free-arm iron stand, Decorating plate
The picture enlarges when you click it.



-----------------------------------------------------------------TOP
JFJ-55

New models have turned up in JF series.

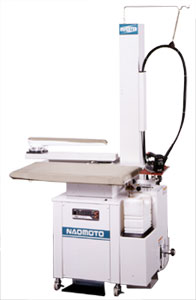

JFJ-55

 The picture enlarges when you click it.
Voltage 200V-1Ph
Motor output 750W, 2 Pole
Heater capacity 1.5kW
Flat table size 400X1000/600X1000mm
Machine size W755XD615XH1750mm
Weight 115kg
Water feeding Automatic
Water tank Cartridge type
Option Iron lifter, Bucks, Flat table
