FBM series
 ｜ ｜
FBM series
FBM-1200ST FBM-1200SE Variety of items

-----------------------------------------------------

Inverter control of motor gives ultra-fine volume control of vacuum or air blowing

FBM-1200ST

MODEL FBM-1200ST The picture enlarges when you click it.
Voltage 220V, 1-Ph
Motor output 750W, 4Pole
Flat table size 1200X650mm
Machine size
 W1410XD995XH1585(mm)
Height adjustment -
Buck Option

Ironing table specialized for bucks from the under-pressing to the final pressing. Height adjustment and changing bucks can be easily done.
Steam ironing system synchronized with vacuum and air blowing will ensure you to mitigate your working burden significantly.

-------------------------------------------------------------TOP

FBM-1200SE

MODEL FBM-1200SE The picture enlarges when you click it.
Voltage 220V, 1Ph

Motor output 750W, 4Pole
Flat table size 1200X650mm
Machine size
 W1410XD995XH1585(mm)
Height adjustment -
Buck F-1720N


The example of an setup with a steam generator is here.

-------------------------------------------------------------TOP

Variety of items
FBM-R･･･ Ironing table for cylindrical items such as skirts and sleeves.
FBM-C･･･
Ironing table specialized in multi purpose with various bucks.
FBM-L･･･ Ironing table only for bucks specialized in seam opening of slacks.

MODEL FBM-R-M800 FBM-R-M810
Voltage 220V, 1-Ph
Motor output 750W, 2Pole
U-shape table size 1000X320mm
Buck caliber 108φ
Machine size
(W×D×H)		 1365X845X1615mm
Height adjustment 790-990mm
Heater capacity - 1250W
Option Iron lifter
The picture enlarges when you click it.

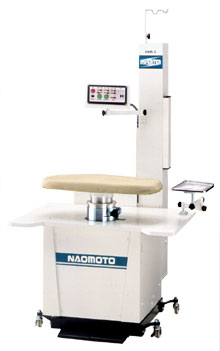

MODEL FBM-C FBM-L
Voltage 220V, 1-Ph
Motor output 750W, 2Pole
U-shape table size -
Buck caliber 148φ
Machine size
(W×D×H)		 900X855X1615mm 1480X825X1615mm
Height adjustment 780-980mm 890-1090mm
Heater capacity -
Option -
The picture enlarges when you click it.
