350 Steam DC Oven (Conveyor Type)

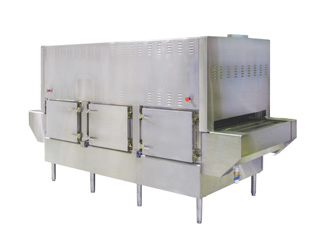

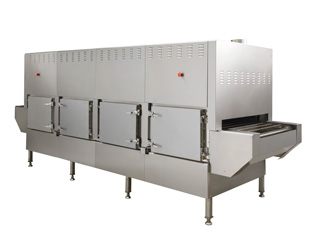

350 Steam DC Oven Large Conveyor Type

High-Speed and High-Power! Conveyor Type Suitable for Mass Production.
* Fish fillet can be cooked for 4 minutes. It is possible to cook more than 4000 pieces of fish fillets per 1 hour.
* Food factory, facility in which school lunch are made, food manufacturer, Seafood manufacturing company.
* You can place an order for the length of the conveyer to increase it by one unit.

QFB-5980C-3R/L

QFB-5980C-3R/L

QFB-5980C-4R/L

QFB-5980C-4R/L
Model
QFB-5980C-3R/L
QFB-5980C-4R/L
Voltage
200V 3ph
200V 3ph
Electric Consumption
79.8kW
106.3kW
Steam working pressure
0.15MPa
0.1MPa
Machine dimension
W3575 x D1350 x H1700mm
W4240 x D1350 x H1700mm

*380V,415V is also available.

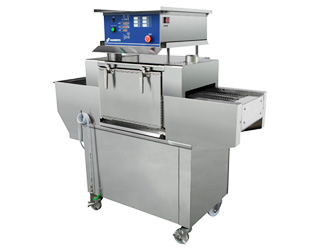

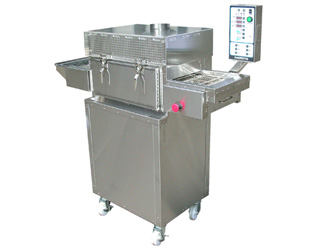

350 Steam DC Oven Small Conveyor Type

* By only putting food material on Input port, cooking will be finished.(There is no worry about leaving inside and overcooked.)
* Available for variety of cooking from restaurant to test kitcchen.
* 6 kinds of cooking program can be registered.

QF-5100CB

QF-5135CB

DFC-350

DFC-350
Model
QF-5100CB
DFC-350
Voltage
200V 3ph
200V 3ph
Electric Consumption
15kW
23.1kW
Steam working pressure
0.1MPa
0.12MPa
Machine dimension
W1305 x D470 x H1340mm
W1530 x D656 x H1952mm
Grill surface dimension
W525 x D250 x H60mm
W525 x D350 x H60mm
Weight
180kg
190kg

*380V,415V is also available.





350 Steam DC Conveyor

* It is possible to adjust smell, taste, and texture of food materials freely by controlling superheated steam and hot air.
* Food factory,facility in which school lunch are made,food manufacturer,seafood manufacturing company.

Conveyor Type for Mass Production

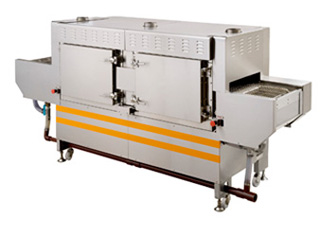

Aero Steam Oven(DFC-560A-2R/L)

Aero Steam Oven
Model
DFC-560A-2R/L
Voltage
200V 3ph
Electric Consumption
32.3kW
Steam working pressure
0.15MPa
Machine dimension
W2880 x D950 x H1225mm
Grill surface dimension
W1510 x D560 x H80mm
Weight
Body:500kg / Control Box:115kg

*380V,415V is also available.
