FBJ/FBR Series

Ironing Table FBJ/FBR Series

Flexible correspondence according to the use that modular function enables. Blow Vacuum Height

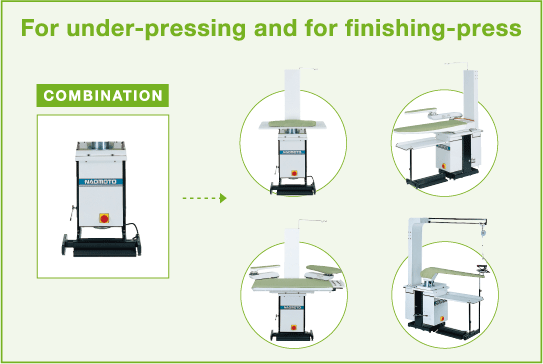

For under-pressing and for finishing-press

With Modular functions, you can select and combine any of NAOMOTO's abundant assortment of Flat-tables and Bucks to compose your own specifications suiting to your purposes, without distinction of either UNDER-PRESSING or FINISHING PRESS.

For under-pressing and for finishing-press


Under Pressing Type

Under Pressing Type

Photo shows a set-up of
FBR Machine-body+
Decoration Plate+
Bucks for waist
Band Seam opening(M-1570)

Under Pressing Type

Under Pressing Type

Photo shows a set-up of
FBJ Machine-body+
Catch Tray(steel type)+
Buck for Slacks Seam
Openning(M-910)+
Iron Lifter set+Iron(HSP-320)



Finishing Pressing Type

Finishing Pressing Type

Photo shows a set-up of
FBJ Machine-body+ Flat table+
2pcs of Swing Arm Adaptor+
Swing Arm+Universal Buck(M-1720)+
Sleeve Buck(M-220)

Finishing Pressing Type

Finishing Pressing Type

Photo shows a set-up of
FBJ Machine-body+
U-shape Table+
Catch tray(steel type)+
Swing Arm Adapter+Swing arm+
Sleeve Buck(M-210)



FB-2000X(-NE)

Vacuuming and Blowing U-Shape Ironing Table with Height Adjustment
FB-2000X

Standard Accessories
*U-shape Buck with M-220 sleeve Buck
*Height adjustable
*Catch tray
(Optional Function)
Synchronized damper exchange with foot pedal by air cylinder.


Model
Voltage,Wattage
Table size(mm)
Machine size(mm)
Height(mm)
Remarks
FBJ/FBR
220V,1Ph,50Hz,750W/
380V,3Ph,50Hz,750W/
220V,3Ph,60Hz,750W
1200x650 (Flat Table)
1250x80 (M-910)
1200x240x360
1400x850x1800
(Flat Table)
700-800
Exhaust Chimney:
Standard
FB-2000X
(-NE)
380V,3Ph,50Hz,750W/
220V,3Ph,50Hz,750W
1180x216x360
1700x600x1735
850-950
Exhaust Chimney:
Standard
