Sponging Machine

Sponging Machine

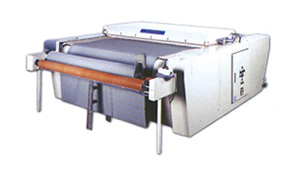

NS-1200S

NS-1200S

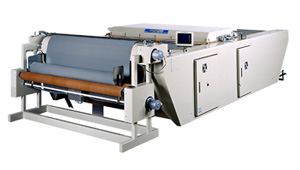

NS-2800F

NS-2800F

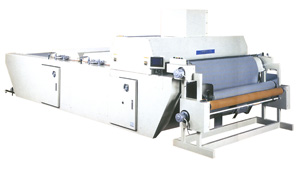

NS-3800F

NS-3800F

Sponging Machine
*Mitigating the fabric tension & distortion which is contained in the fabric roll, and will resolve the problem of instability factors on the sensitive fabric.
*Minimizing the size differential during sewing process, and maximizing the ability of CAD/CAM processing.
*10 different programs can be input by touch panel screen synchronized with micro-computer.
*Non-tension Conveyor belt entire through fabric from feeding to Folding stacker after sponged.
*Temperature control by Electric heater enables to adjust the most suitable temperature required for sensitive fabric such as synthetic fiber.
*Minimizing the process time for cutting and increase the operative efficiency.

Model
NS-1200S
NS-2800F
NS-3800F
Sponging Width
1800mm
1800mm
1800mm
Stacker Width
520mm
650mm
650mm
Belt Speed
2~4m/min
3~6m/min
4~9m/min
Steam Consumption
40~80kg/h
60~100kg/h
60~120kg/h
Machinr Dimension
2,500x4,100mm
2,500x5,550mm
2,500x6,680mm
Electric Capacity
14.90kW
15.55kW
28.95kW
