PRESS SYSTEM
|

NAOMOTO PRESS SYSTEM
It gives consistent quality
NP-110 NP-151 NP-181 NP-210 NP-250 NP-400M

Touch type LSD screen
・Easy and simple programming by touch type LCD
New versatile functions:
・Pre- and post-steaming makes conditioning possible.
It makes repair work simple.
・Error message display shows cause of electrical problem.
・Distance between head and buck is adjustable for pre- and post steaming.
・Test pressing by manual operation became possible.
Current Standard Functions:
・Cloth roll cover protects fabrics from damage
・Fine adjustment of distance between head and buck eliminates shine andimpressions.
・Programmable vacuum strength through inverter system
・Optional steam heating lower buck
・Machine is easy to move on casters
-----------------------------------------------------------

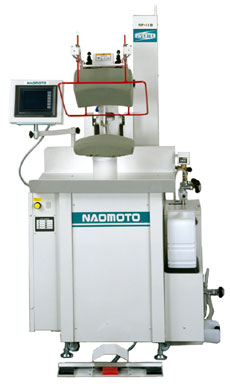

NP-110
　
NP-110 for small utility operation
  • This energy and space saving utility machine makes layout changes in the sewing process simple.
    Individual functions of pressing time, pre-steam, steam and vacuum result in high quality and consistent finishing.

    (Remarks) NP-110VB = with vacuum and boiler,
    NP-110V = with vacuum, but without boiler

    The picture enlarges when you click it.
NP-110
Voltage 220V 1ph/3ph 50/60Hz
Electrical
Boiler
(NP-110VBonly)
 1.7kw
Head heater 1.0kw
Fan motor 0.75kw
Water feeding pump moto for boiler
(NP-110VB only)		 0.015kw
Steam pressure (NP-110VB)1kg/cm2
(NP-110V) 5kg/cm2
Steam consumption 2.3kg/Hr
Air pressure 5kg/cm2
Air connection 10mm dia.
Machine dimension
(installation)
 (VB)W890xD855xH1600mm
(V)W790xD855xH1600mm
Steam connection 1/2"
Control Microprocessor

---------------------------------------------------------------TOP

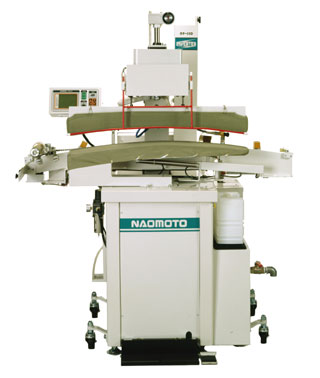

NP-151
　For sleeves, side and center back
  • Revolutionary ergonomic automatic system requires no hand iron for seam opening.
    Perfect results on difficult fabrics. Tandem operation for maximum productivity.
  • High quality and consistent finish
  • Higher productivity, easier operation

    (Remarks) NP-151VB = with vacuum and boiler,
    NP-151V = with vacuum, but without boiler

    The picture enlarges when you click it.
NP-151
Voltage 220V 1ph/3ph 50/60Hz
Electrical Boiler
(NP-151VB only)		 3.4kw
Head heater (Steam heated)
Fan motor 0.75kw
Water feeding pump motor for boiler
(NP-110VB only)		 0.015kw
Steam pressure (NP-151VB)3kg/cm2
(NP-151V) 5kg/cm2
Steam consumption 4.6kg/cm2
Air pressure 5kg/cm2
Air connection 10mm dia.
Machine dimension
(Installation)		 W1070xD972xH1670mm(VB)
W1070xD972xH1670mm(V)
Steam connection 1/2"
Control Microprocessor

---------------------------------------------------------------TOP

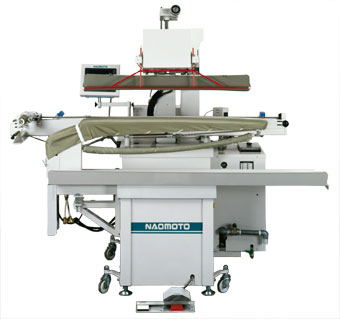

NP-181
No more impressions, shine or folding
Faster seam opening

Revolutionary ergonomic automatic system requires no hand iron for seam opening. Pressing time, pre-steaming, steaming and vacuum are programmed individually by computer.
  • Cloth roll cover protects fabrics from damage
  • Machine is easy to move on casters
  • Fine distance adjustment between head and buck avoids impressions
  • Vertically acting head ensures even pressure
  • Simple turning device to turn pant legs after seam opening
  • Leg tensioning device assists seam opening and prevents seam folding

    (Remarks) NP-181VB = with vacuum and boiler,
    NP-1818V = with vacuum, but without boiler

    The picture enlarges when you click it.
NP-181
Voltage 220V 1ph/3ph 50/60Hz
Electrical Boiler
(NP-181VB only)		 3.4kw
Head heater (Steam heated)
Fan motor 0.75kw
Roller motor 0.025kw
Water feeding pump motor for boiler
(NP-181VB only)		 0.06kw
Steam pressure (NP-181VB)3kg/cm2
(NP-181V)5kg/cm2
Steam consumption 4.6kg/Hr
Air pressure 5kg/cm2
Air connection 10mm dia.
Machine dimension(Installation) W1895xD972xH1670mm
Steam connection 1/2"
Control Microprocessor

---------------------------------------------------------------TOP

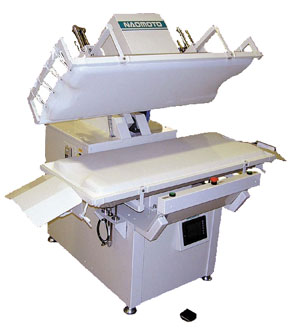

NP-210

Eliminating pressing mark, shining and Wrinkles caused by steam

  • STRETCH FUNCTION
    The adoption of STRETCHING to both upper and lower buck prevents any pressing mark.
  • MICROPROCESSOR CONTROL
    Pre-Input Program(Distance, Press, Upper Buck Steam, Lower Buck Steam, Vacuuming, Upper Buck Stretching, Lower Buck Stretching, Option Air)ensures the finest quality in finishing for your garments.


    The picture enlarges when you click it.
    NP-210
    Voltage 220V
    Working steam pressure 0.5MPa(5kgf/cm2)
    Steam consumption 20-30kg/h
    Working air pressure 0.5MPa(5kgf/cm2)
    Air connection bore 10mm dia.
    Buck size Upper 460X1160mm
    Lower 460X1160mm
    Machine dimension 1800(W)X1400(D)X1700(H)mm
    Steam connection bore 1/2"
    Control Microprocessor


---------------------------------------------------------------TOP

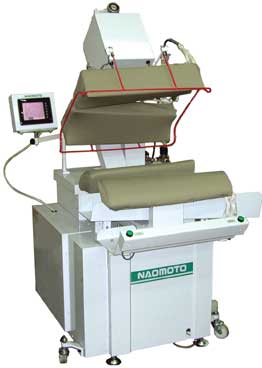

  • High quality finish with bucks of three dimensional curve for lapel
  • Even beginners can set up this model.
The picture enlarges when you click it.
NP-250
Voltage 200V/3Ph
Electric Capacity 750W
Dimensions (mm) W1160 X D1320 X H1650

---------------------------------------------------------------TOP

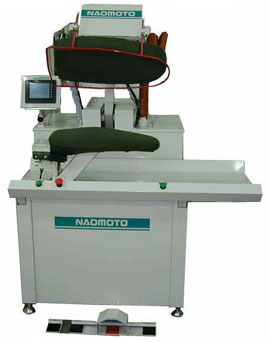

NP-400M

Eliminating pressing mark, shining and Wrinkles caused by steam

  • CYCLE OPERATION
    enables you to finish pants with excellent quality by combining each programs to meet different requirement of each portion of pants.
  • MICROPROCESSOR CONTROL
    Pre-Input Program(Distance, Press, Upper Buck Steam, Lower Buck Steam, Vacuuming, Upper Buck Stretching, Lower Buck Stretching, Option Air)ensures the finest quality in finishing for your garments.
  • Vartical pressing
  • Waistband-clamp and stretching device
  • Edge vacuuming

    The picture enlarges when you click it.
    NP-400M
    Voltage 220V
    Working steam pressure 0.5~0.7MPa(5~7kgf/cm2)
    Steam consumption 20~30kg/h
    Working air pressure 0.55MPa(5.5kgf/cm2)
    Piping connection bore Steam inlet 1/2"
    Condensate outlet 1/2"
    Air connection 10mm dia.
    Exhaust air 75mm dia.
    Machine dimension 1000(W)X1200(D)X1400(H)mm
    Control Microprocessor
